The outdoor portable butane stove is a compact gas cooking appliance fueled by standard butane canisters, utilizing pre-mixed combustion for efficient heat output. Its key features include instant ignition (no preheating), precise flame control, and highly portable design. It is widely used in family camping, park picnics, outdoor barbecues, and road trips, serving as a classic solution for simplifying outdoor cooking and quickly preparing hot meals. Modern designs prioritize safety features (e.
Category: 户外露营锅具系列
Product description
1. Key Features
- Ultra-Light & Compact: Weighs only 450g; folds down to 5cm thin for effortless packing.
- Altitude & Weather Smart: Patented pressure stabilization ensures consistent performance even at high altitudes or in low temperatures.
- Superior Wind Resistance: Triple-layer wind shield withstands up to 7-level gusts, boosting thermal efficiency by 30%.
- Advanced Safety Systems: Integrated gas canister lock, overpressure safety valve, and automatic flame failure protection.

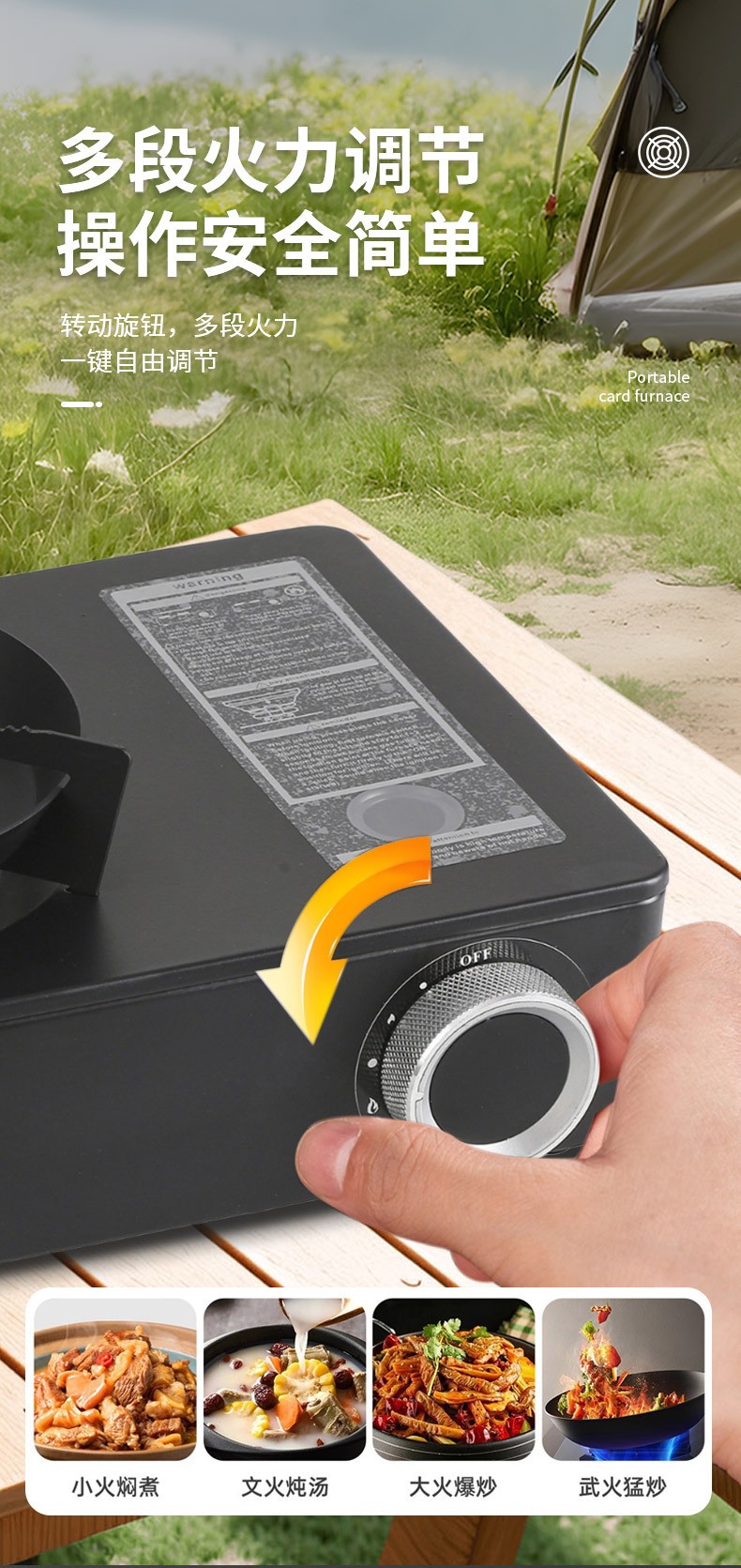

- Wide & Precise Flame Control: Adjustable output from 1000W to 3500W, perfect for simmering to searing.
2. Technical Specifications
| Item | Specification |
|---|---|
| Model | TBJ-200X |
| Fuel Type | Standard Butane Canister (Net weight 220-250g) |
| Heat Output | 1000–3500W (3400–12000 BTU/H) |
| Ignition | Piezo Electric Ignition |
| Dimensions (Open) | 32 × 24 × 10 cm |
| Dimensions (Folded) | 24 × 19 × 5 cm |
| Net Weight | 450g |
| Material | Special Aluminum Alloy Burner + Stainless Steel Panel |
| Safety Features | Auto Flame-Out Protection, Overpressure Safety Valve, Canister Lock |
| Recommended Use | Camping, Picnics, Road Trips, Emergency Preparedness |
3. Functional Details
Intelligent Performance

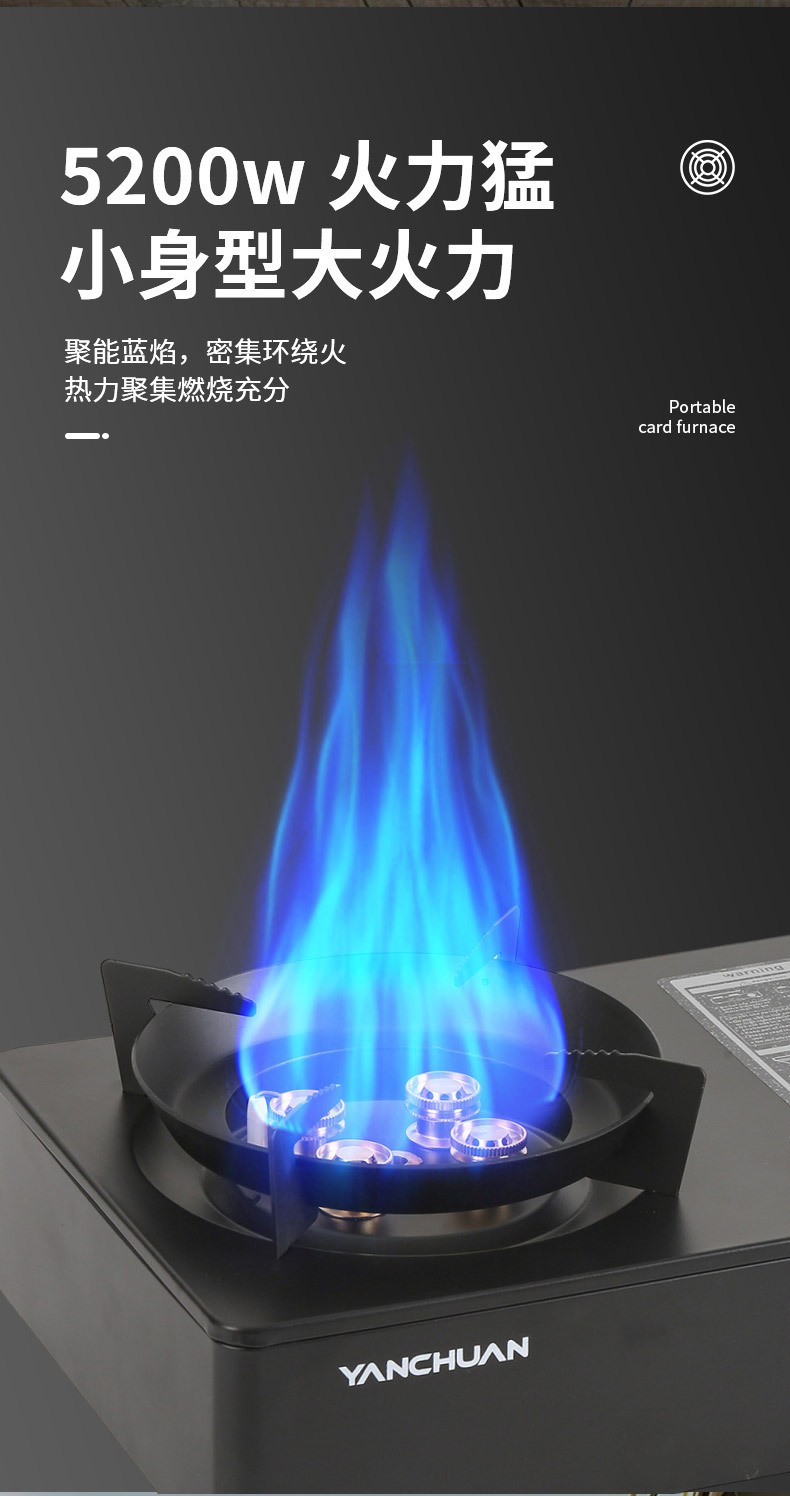

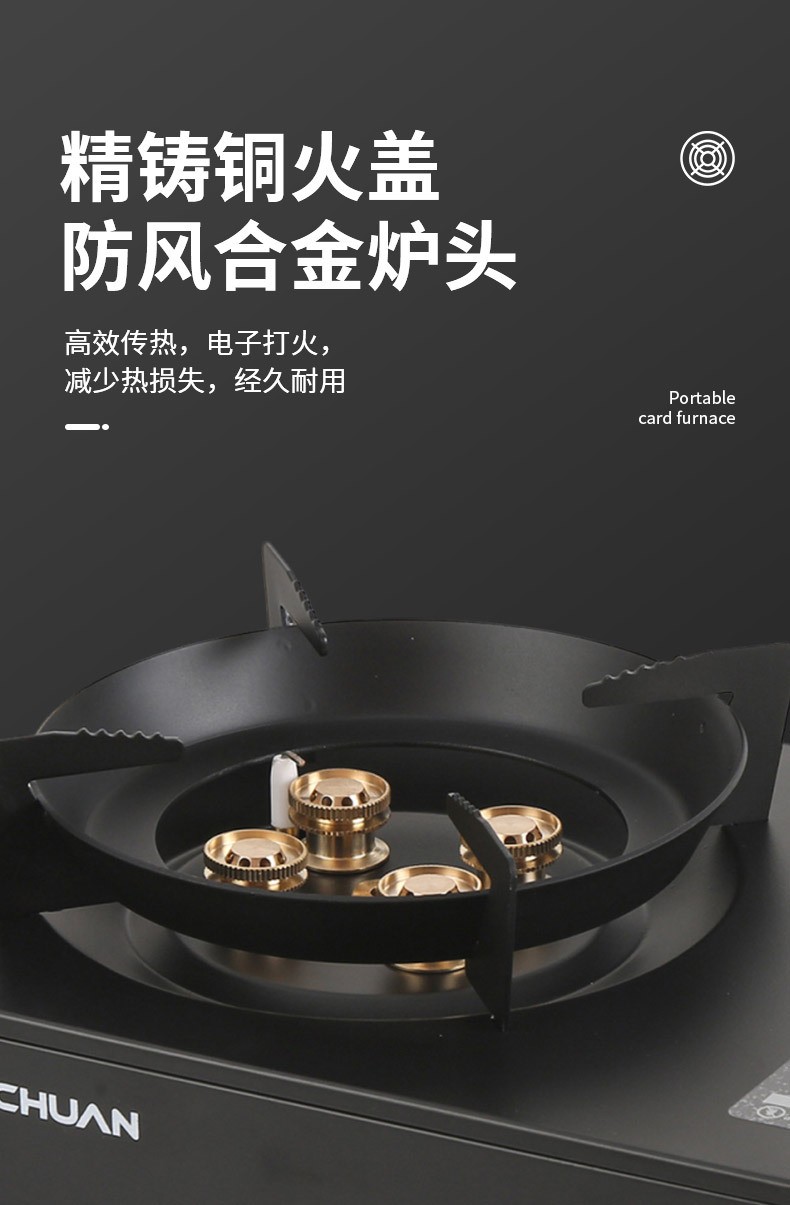

- Dual-Ring Jet Burner: Cross-flame technology distributes heat evenly, preventing hot spots.
- High-Altitude Ready: Pressure stabilization minimizes performance loss (below 15%) up to 4000m.
- Optimized Thermal Efficiency: Ring-shaped wind shield increases heat reflection to 68%, saving fuel.
Safety Design
- 3-Stage Safety System:Pressure sensor cuts off gas if abnormal canister pressure is detected.Thermocouple probe shuts off gas valve within 3 seconds of unexpected flame-out.Reinforced locking mechanism secures canister at any angle.
User-Friendly Details
- Folding Control Knob: Tucks inside the stove body to prevent damage during transport.
- Removable Cooking Grate: Easy to detach for cleaning and maintenance.
- Integrated Storage: Includes carrying pouch with gas adapter and basic maintenance tools.
4. Ideal Use Cases
- Family Camping: Cooks for 3–5 people outdoors.
- Solo Backpacking: Light enough for long hiking trips.
- Outdoor Photography: Provides hot meals and drinks during extended shoots.
- Emergency Preparedness: Can supply continuous cooking for up to 72 hours in crisis situations.
- Tailgate Parties: Multi-stove linking capability supports large outdoor gatherings.
5. Usage Tips
- Canister Choice: Use standard 220g butane canisters for up to 2.5 hours at max output.
- Temperature Range: Operates from -10°C to 40°C; pre-warm canister in cold conditions.
- Cookware Pairing: Best with 18–24cm flat-bottom pots/pans for optimal efficiency.
- Maintenance: Clean burner with a soft brush monthly to keep ports clear.
6. What’s in the Box
- TrailBlaze Jet Stove Body ×1
- Carrying Pouch ×1
- Multi-Country Canister Adapter Kit ×1 set
- Cleaning Brush ×1
- Bilingual Manual (EN/CN) ×1
- Warranty Card (2-Year) ×1
7. Safety Warnings
- NEVER use indoors, in enclosed spaces, or inside tents.
- Always place stove on a stable, flat surface.
- Ensure the canister is fully locked before ignition.
- Allow stove to cool for at least 30 minutes before touching burner area.
- Not recommended for use in extreme wind conditions (above Level 7).
